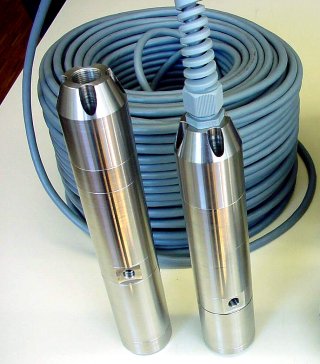

GGUN FL-24
Fluorometer for 2" boreholes

Usage: Usage: tracing experiments in 2" boreholes tested to depths of 70 metres. No mechanical parts, no wear. Can be used as well with quick-connect fittings and 6 mm tubings. Model FL24 has quadruple excitation and detection axes, allowing simultaneous use of three tracers and independent turbidity measurement.



Caracteristics
Number of optics4
Turbidity detection0.02 to 400 NTU
Detection limit2 x 10-11 g/ml typical (uranine)
Minimum acquisition interval4 seconds
Communication interfaceRS232
Acquisition current consumption8mA to 28mA
Analog to digital conversion24 bit unipolar
Cable connection30 m or more. weight 1kg/10m
Built-in thermometer - precision0.1°C
Built-in thermometer - resolution0.034°C


Specifications
mechanical
  • 48mm diameter
  • 27cm height
  • IP68 Stainless steel
  • 2.2kg
power
  • 12V (9 to 15V) DC power


Use Cases
  • 2" Borehole
  • Hydrogeology
  • Speleology
